K 3230 3D
Price range: £32.62 through £34.07

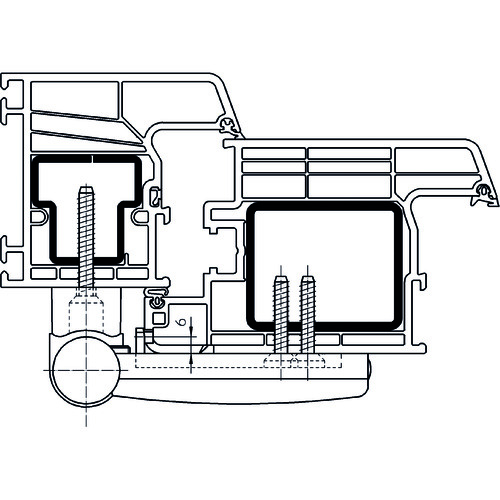

for PVCu entrance doors with angular fixing cams
Product features
- for overlap thicknesses 21-25 mm
- door part with angular fixing cams for extremly high pull-out strength
- 3D adjustment (side +/- 5,0 mm, height + 5,0/- 1,0 mm, compression +/- 2,0 mm)
- with integral security pin
- maintenance-free slide bearings
Downloads
- Description
- Additional information
Description
Technical details
Load capacity: 120.0 kg
Knuckle length: 105.0 mm
Knuckle diameter: 24.0 mm
Pin diameter: 10.0 mm
Suitable for
Type of door leaf: PVCu
Rebate: rebated
Additional information
| Finish | RAL 9016 Traffic White, RAL 9016 Traffic White, H9 Brown, RAL 9006 White Alu, clear lc |
|---|
