VX 7729/160-4 HA MSTS with VX 7531 3D and VX 7561 KK
Price range: £133.54 through £152.85
consisting of knuckle hinge, receiver and cover angle
Product features
- with welded hinge knuckle
- with security pin
- for timber/aluminium doors
- continuous 3D adjustment (side + 2,0/- 4,0 mm, height +/- 3,0 mm, compression +/- 3,0 mm)
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
- Additional information
Description
Finish

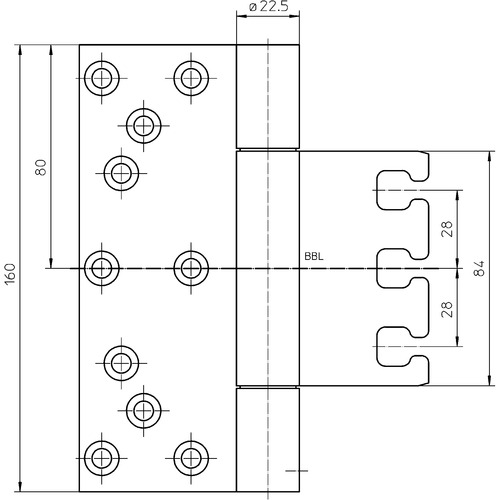

Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Material thickness: 4.0 mm
Screws: 6.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame
Note
The load capacity mentioned above refers to two hinges per door leaf (1 x 2 m). Also the load capacities of the respective combined receiver have to be taken into consideration. For detailed information please look at the chapter technical information.
Additional information
| Finish | Satin Stainless Steel, RAL 9005 Matte Black |
|---|
