Delivery in 2-3 weeks
VX 7939/160 FD S WK MSTS
Price range: £92.26 through £109.70
for rebated, burglar resistant soundproof doors with acoustic seal
Product features
- with security pin and 2 welded security dowels
- for rebated, burglar resistant soundproof doors (resistance class)
- with groove for continuous acoustic seal
- for timber, steel or aluminium frames
- for 3D adjustable VARIANT VX receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
- Additional information
Description
Finish

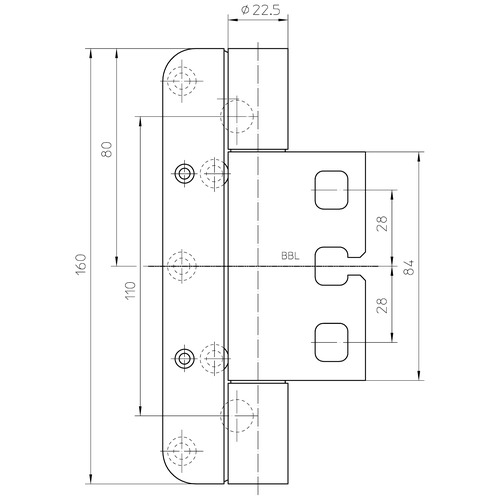

Technical details
Load capacity: 200.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.5 mm
Screws: 5.0 x 50.0 mm
Screws for cover plate: 3.0 x 25.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame
Additional information
| Finish | Satin Nickelled F2, Satin Stainless Steel |
|---|
