Delivery in 2-3 weeks

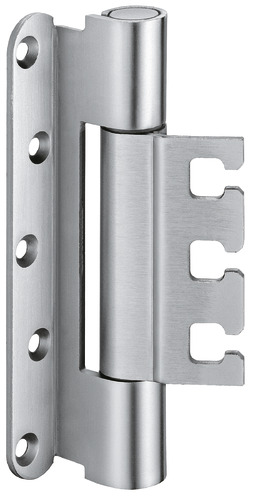

VX 7939/160-4 VBR plus
Price range: £81.36 through £90.80
with welded hinge knuckle for rebated, high performance heavy-duty doors
Product features
- with welded hinge knuckle
- for rebated, extreme high performance heavy-duty doors
- for timber frames
- for 3D adjustable VARIANT VX receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- Description
- Additional information
- More Products
Description
Finish

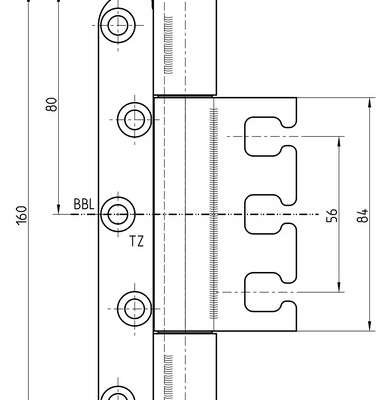

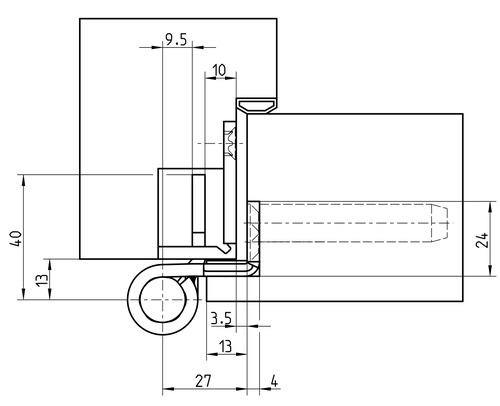

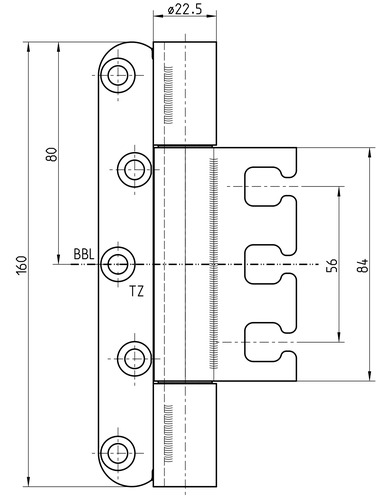

Technical details
Load capacity: 400.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 4.0 mm
Screws: 6.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: blind frame, block frame, casing frame
Additional information
| Finish | Satin Nickelled F2, Satin Stainless Steel |
|---|
