Delivery in 2-3 weeks
VX 7729/160 Planum
Price range: £47.50 through £48.97
with reduced, elegant knuckle for unrebated heavy-duty doors
Product features
- with reduced, elegant knuckle
- integral security pin
- for unrebated heavy-duty doors
- for timber, steel or aluminium frames
- for 3D adjustable VARIANT VX receivers
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
- Additional information
Description
Finish

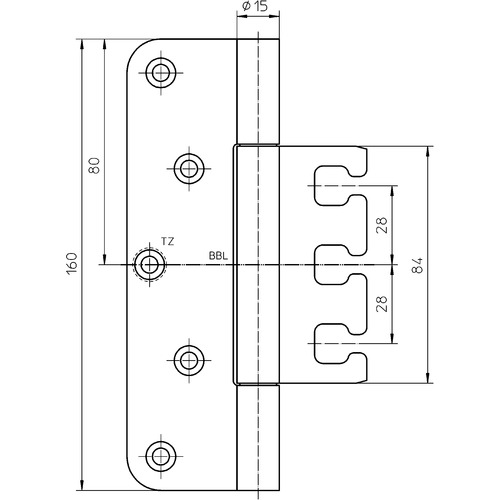

Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 15.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.0 mm
Screws: 5.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame
Additional information
| Finish | satin chromed F1, Satin Stainless Steel |
|---|
