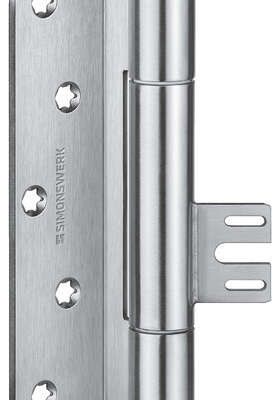

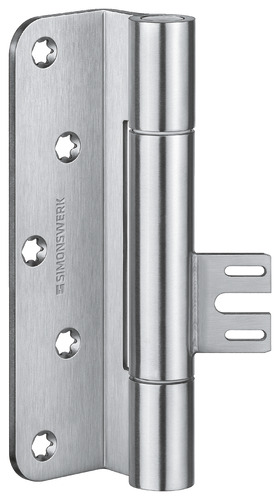

VX 8849/160 – Satin Stainless Steel
£74.08
for unrebated heavy-duty doors
Product features
- for unrebated heavy-duty doors applicable with VX …./160
- for steel frames with a VARIANT weld-in pocket
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- Description
Description

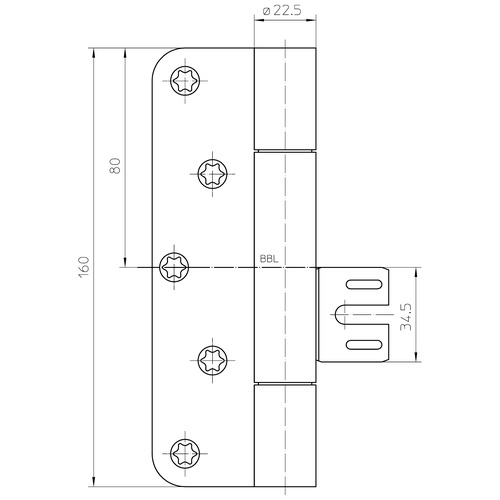

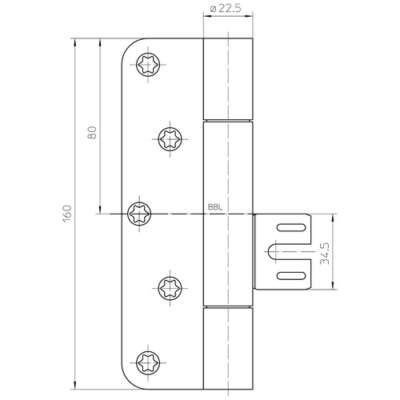

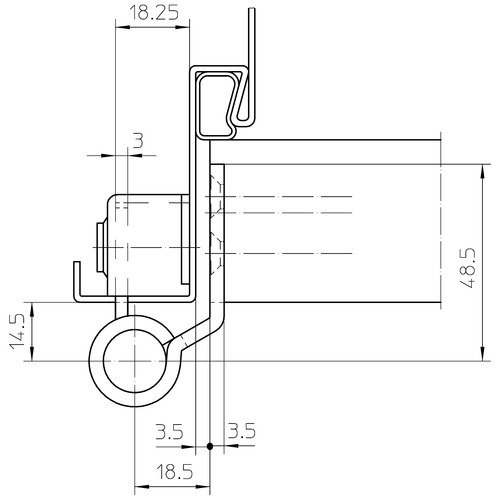

Technical details
Load capacity: 100.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.5 mm
Screws: 5.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: steel frame
Note
The load capacity mentioned above refers to two hinges per door leaf (1 x 2 m). Also the load capacities of the respective combined receiver have to be taken into consideration. For detailed information please look at the chapter technical information.
Please consider DIN reference.
Screws 4,5 x 50,0 mm can be used as an alternative for lowering the depth.
