Rim Latch Regency

SKU: MDSRR Category: MDS Locks and Latches

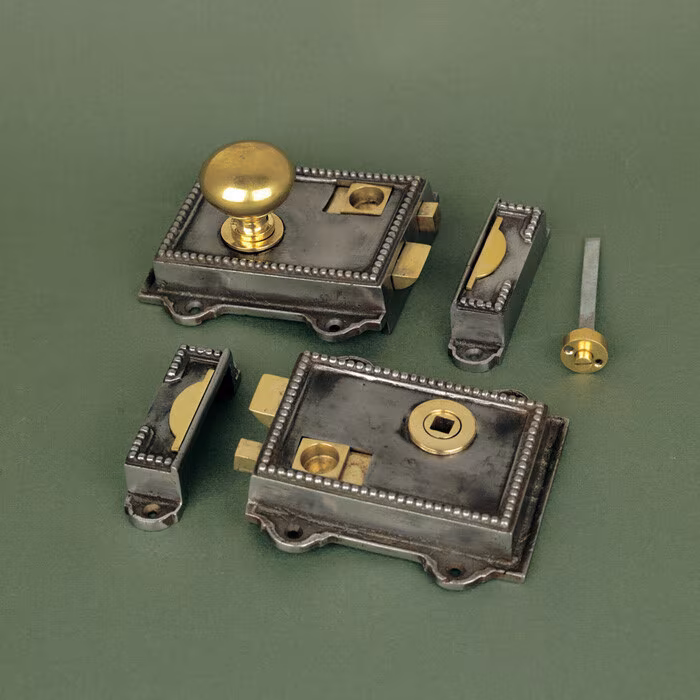

Our elegant Regency latch with its beaded edge design is available in three hand-aged finishes – cast brass, cast iron with brass fittings or nickel plated brass. Ideal for use with our small Cottage knob.

Dual handed design (able to be used on left or right hand side of door) with a traditional thumb nail latch.

The spring latch can be reversed to accommodate doors which open inwards or outwards.

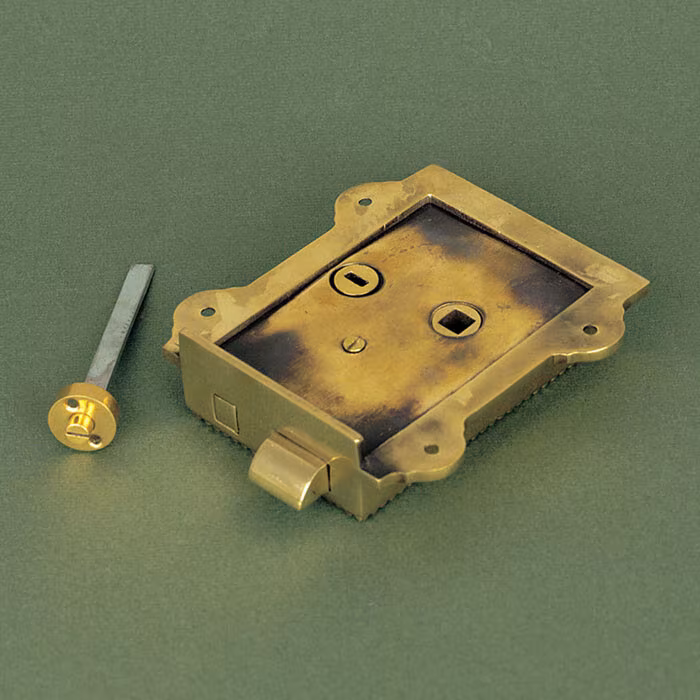

Comes complete with an emergency release (facilitating access from outside the room in the event of an emergency).

Each latch comes boxed with screws, full fitting instructions and template.

Click link above to open or right click and choose "Save link as" to download

Product checklist:

• Product codes – Aged brass (RRb) Aged nickel (RRN) Iron (RRi)
• Lock Body – 108mm (H) x 115mm (W). Projection – 27mm
• Backset (spindle centre to edge of door): 65mm
• Keep – 99mm (H) x 24mm (W). Projection – 27mm
• Springlatch – able to be reversed
• All products un-lacquered
• Weight (boxed): 900g
• Max recommended rose size when using emergency release: 42mm
