SKU: TE 380 3D Categories: Simonswerk Collection, Simonswerk Hinges

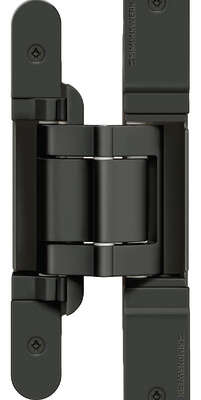

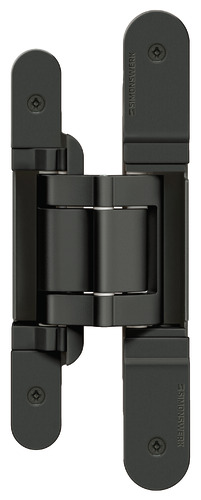

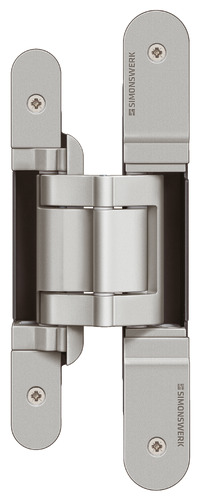

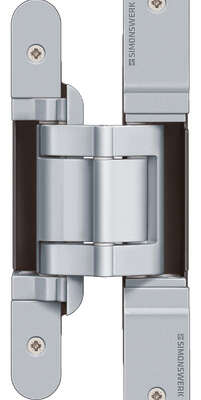

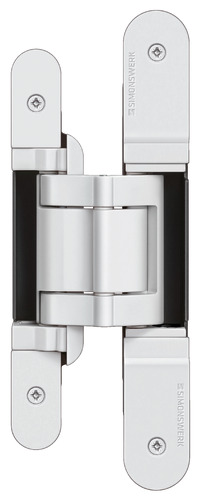

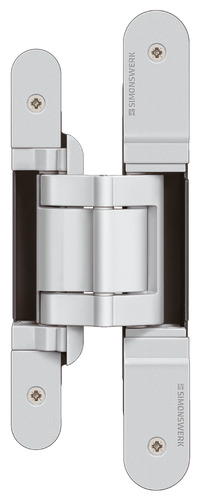

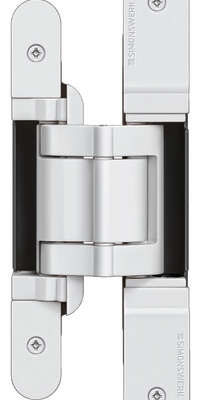

Simonswerk Tectus Concealed Hinge TE 380 3D

for unrebated residential doors with recessed frame facings

Product features

• FVZ = for recessed frame facings
• recessed frame facings up to 12,0 mm
• completely concealed hinge system
• for block and steel frames
• for unrebated residential doors
• sideways closed hinge body for a homogeneous mortise appearance
• 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
• maintenance-free slide bearings

Technical details

Load capacity: 60.0 kg
Overall length: 125.0 mm
Width (door part): 36.0 mm
Width (frame part): 24.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Opening angle: 180°

Suitable for

Type of door leaf: timber
Rebate: unrebated
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame

Note

**These products are made to order and generally take around 2 weeks - if you require urgently please contact the office.
