Delivery in 2-3 weeks
VN 3737/160 Compact
Price range: £92.26 through £114.77
for rebated heavy-duty doors with casing frames and as retrofit hinge with steel frames
Product features
- for rebated heavy-duty doors
- for casing and steel frames
- with receiver in the door leaf
- comfortable 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- for VARIANT VS receiver and blind rivet nut M10
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
- Additional information
Description

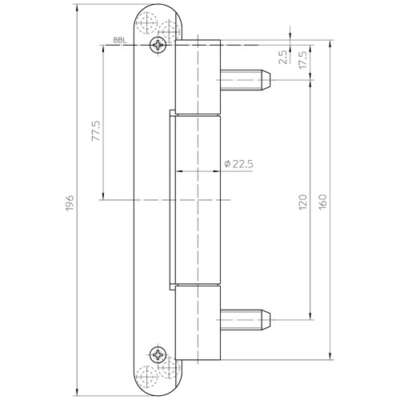

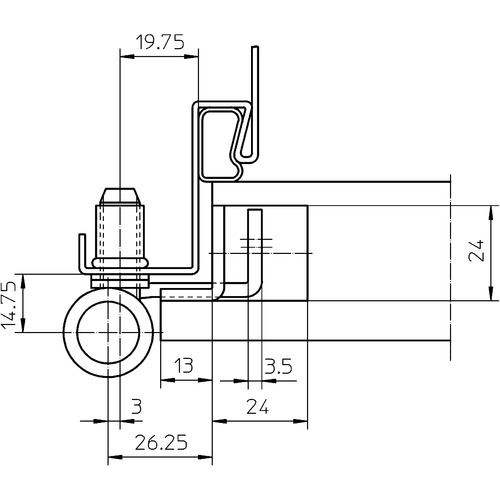

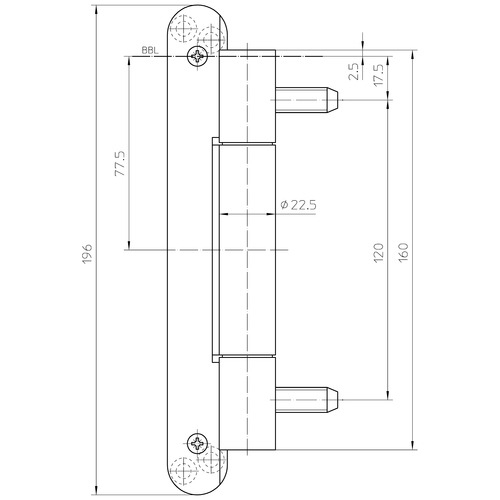

Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.5 mm
Screws: 5.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated
Type of frame: casing frame, steel frame
Finish
Additional information
| Finish | Satin chromed F1, Satin Stainless Steel |
|---|
