VN 2927/120 Compact
Price range: £67.85 through £77.02
for unrebated heavy-duty doors with thin block frames and blind frames
Product features
- for unrebated heavy-duty doors
- for block and blind frames
- with receiver in the door leaf
- comfortable 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
- Additional information
Description

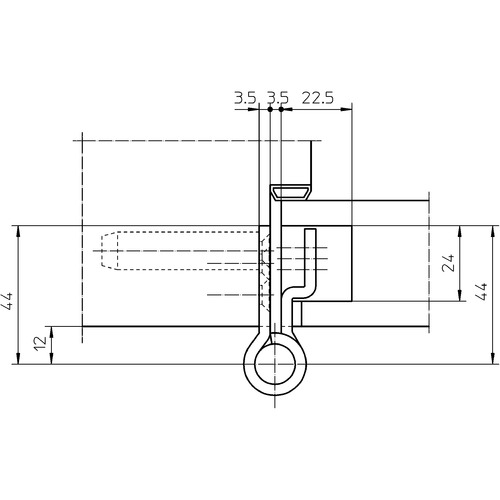

Technical details
Load capacity: 120.0 kg
Knuckle length: 120.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.5 mm
Screws: 5.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: blind frame, block frame
Finish
Additional information
| Finish | Satin chromed F1, Satin Stainless Steel |
|---|
