MULTI 3D VN 3030
Price range: £61.32 through £101.69
for rebated PVCu and timber doors
Product features
- for rebated PVCu and timber doors
- for overlap thicknesses 13-18 mm
- continuous 3D adjustment (side +/- 3.0 mm, height +/- 4.0 mm, compression +/- 3.0 mm)
- with angular bolting for high pull-out strength
- Description
- Additional information
Description
Technical details

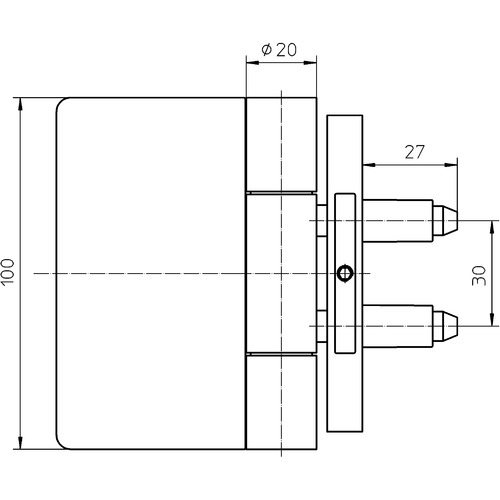

Load capacity: 100.0 kg
Knuckle length: 100.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Suitable for
Type of door leaf: timber, PVCu

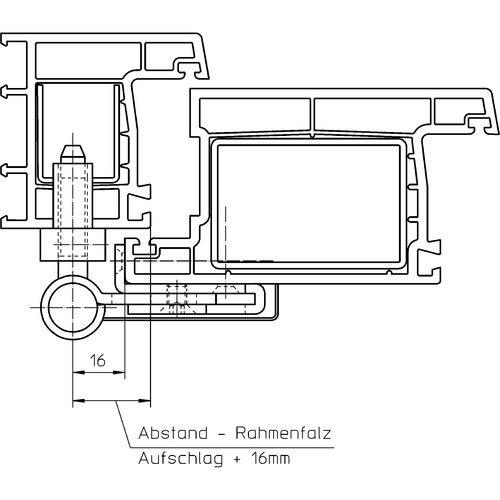

Rebate: rebated
Type of frame: casing frame
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
Also available with security pin (MSTS).
Additional information
| Finish | Satin Stainless Steel, RAL 9016 Traffic White |
|---|
