MULTI 2D VN 5046
Price range: £38.79 through £90.80
for flush aluminium and steel doors
Product features
- for flush aluminium and steel doors
- continuous 2D adjustment (side +/- 3.0 mm, height +/- 4.0 mm)
Downloads
- Description
- Additional information
Description

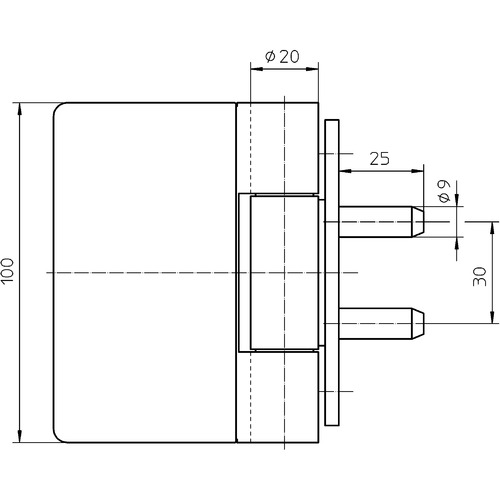

Technical details
Load capacity: 100.0 kg
Knuckle length: 100.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Suitable for
Type of door leaf: aluminium, metal
Rebate: rebated flush
Type of frame: aluminium frame, steel frame
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m), for detailed information please look at the chapter technical information.
Also available with security pin (MSTS).
Finish
Additional information
| Finish | Blue galvanized, Satin Stainless Steel |
|---|
