Delivery in 2-3 weeks
VX 7729/160-4 Bronze – Bronze light patined
£119.86
for unrebated heavy-duty doors
Product features
material Bronze
for unrebated heavy-duty doors
for timber, steel or aluminium frames
for 3D adjustable VARIANT VX receivers
internal torsion-proof pin
concealed, maintenance-free axial-radial slide bearings
- Description
Description

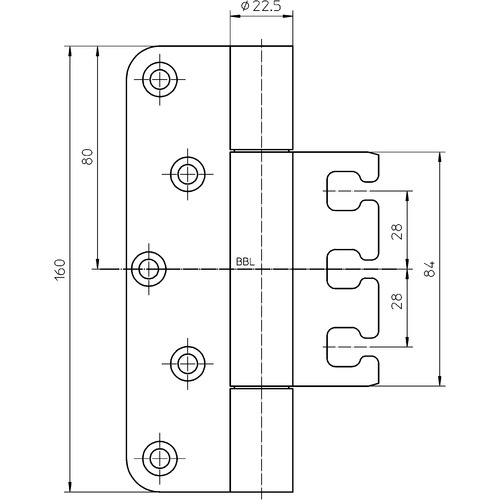

Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 4.0 mm
Screws: 6.0 x 50.0 mm
Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame
