Delivery in 2-3 weeks
VX 7939/160-4 Bronze – Bronze light patined
£119.86
for rebated flush heavy-duty doors
Product features
- for rebated flush heavy-duty doors
- for timber, steel or aluminium frames
- for 3D adjustable VARIANT VX receivers
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
- Description
Description

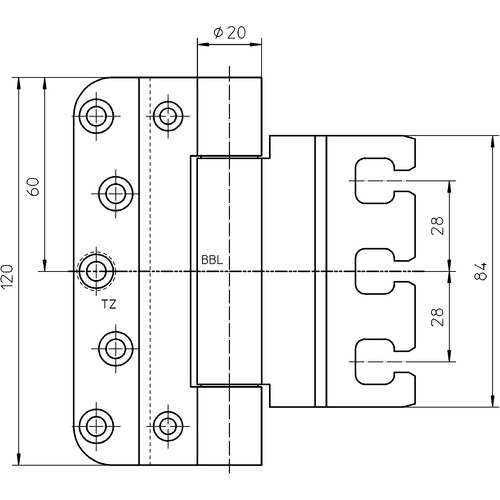

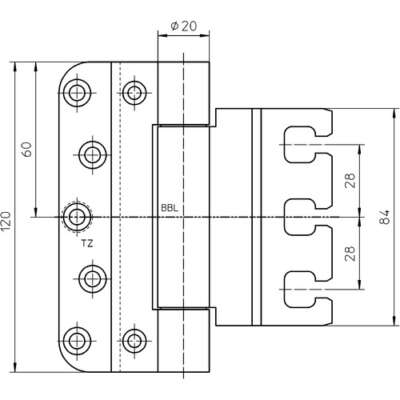

Technical details
Load capacity: 100.0 kg
Knuckle length: 120.0 mm
Knuckle diameter: 20.0 mm
Pin diameter: 10.0 mm
Cutter diameter: 24.0 mm
Collar ring diameter: 30.0 mm
Material thickness: 3.5 mm
Screws: 5.0 x 50.0 mm
Screws for overlap: 4.5 x 30.0 mm
Suitable for
Type of door leaf: timber
Rebate: rebated flush
Type of frame: aluminium frame, blind frame, block
