VX 7729/160-4 HA MSTS with VX 7531 3D and VX 7561 KR – Satin Stainless Steel
£135.71
consisting of knuckle hinge, receiver and cover angle
Product features
- with welded hinge knuckle
- with security pin
- for timber/aluminium doors
- continuous 3D adjustment (side + 2.0/- 4.0 mm, height +/- 3.0 mm, compression +/- 3.0 mm)
- internal torsion-proof pin
- concealed, maintenance-free axial-radial slide bearings
Downloads
- Description
Description

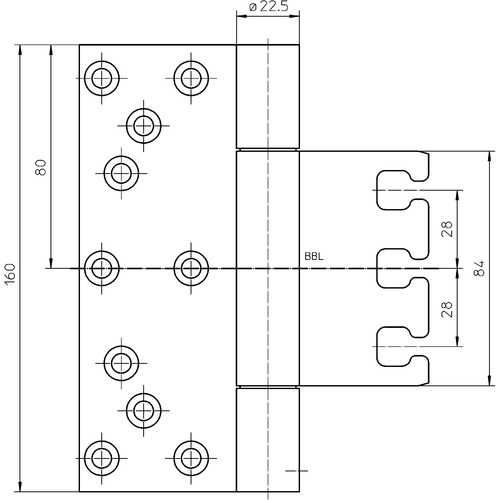

Technical details
Load capacity: 160.0 kg
Knuckle length: 160.0 mm
Knuckle diameter: 22.5 mm
Pin diameter: 10.0 mm
Material thickness: 4.0 mm
Screws: 6.0 x 50.0 mm

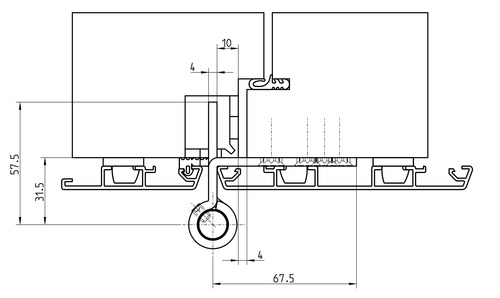

Suitable for
Type of door leaf: timber
Rebate: unrebated
Type of frame: aluminium frame, blind frame, block frame, casing frame, steel frame
Note
The load capacity mentioned above refers to two hinges per door leaf (1 x 2 m). Also the load capacities of the respective combined receiver have to be taken into consideration.
