BL 8060 BT SF
with single-sided fixing bracket (wall-glass) for single-action shower glass doors without hold open function
Product features
- hydraulic hinge
- for use with wall-glass combinations
- with single-sided fixing bracket
- with closing speed adjustment
- for applications in damp environments and high temperature
- o-rings of the hydraulic circuit are made of Viton
- pivot is made of stainless steel AISI 420
- automatic closing from + 90°
BL 8015
with double-sided fixing bracket (glass-glass) for double-action residential glass doors
Product features
- hydraulic hinge
- for use with glass-glass combinations
- with closing speed adjustment
- hold open function at + 90° and - 90°
- automatic closing from + 80° and - 80°
- can also be used for single-action doors
BL 8015 SF
with double-sided fixing bracket (glass-glass) for double-action residential glass doors without hold open function
Product features
- hydraulic hinge
- for use with glass-glass combinations
- with closing speed adjustment
- automatic closing from + 90° and - 90°
- can also be used for single-action doors
BL 8015 SOL
with double-sided fixing bracket (glass-glass) for double-action residential glass doors
Product features
- free swinging hinge
- for use with glass-glass combinations
- can also be used for single-action doors
BL 8011 SOL
with single-sided fixing bracket (wall-glass) for double-action residential and heavy-duty glass doors
Product features
- free swinging hinge
- with single-sided fixing bracket
- for use with wall-glass combinations
- can also be used for single-action doors
BL 8011
with single-sided fixing bracket (wall-glass) for double-action residential and heavy-duty glass doors
Product features
- hydraulic hinge
- for use with wall-glass combinations
- with single-sided fixing bracket
- with closing speed adjustment
- hold open function at + 90° and - 90°
- automatic closing from + 80° and - 80°
- can also be used for single-action doors
BL 8011 SF
with single-sided fixing bracket (wall-glass) for double-action residential and heavy-duty glass doors without hold open function
Product features
- hydraulic hinge
- for use with wall-glass combinations
- with single-sided fixing bracket
- with closing speed adjustment
- automatic closing from + 90° and - 90°
- can also be used for single-action doors
BL 8010 SOL
with double-sided fixing bracket (wall-glass) for double-action residential and heavy-duty glass doors
Product features
- free swinging hinge
- for use with wall-glass combinations
- can also be used for single-action doors
BL 8010 BT JC
with double-sided fixing bracket (wall-glass) for double-action residential, heavy-duty and shower glass doors with zero point adjustability
Product features
- hydraulic hinge
- for use with wall-glass combinations
- with closing speed adjustment
- with zero point adjustment
- inner body anodized with special deep oxidation (20 micron)
- hold open function at + 90° and - 90°
- automatic closing from + 80° and - 80°
- version without cover caps
BL 8010 SF
with double-sided fixing bracket (wall-glass) for double-action residential and heavy-duty glass doors without hold open function
Product features
- hydraulic hinge
- for use with wall-glass combinations
- with closing speed adjustment
- automatic closing from + 90° and - 90°
- can also be used for single-action doors
BL 8010
with double-sided fixing bracket (wall-glass) for double-action residential and heavy-duty glass doors
Product features
- hydraulic hinge
- for use with wall-glass combinations
- with closing speed adjustment
- hold open function at + 90° and - 90°
- automatic closing from + 80° and - 80°
- can also be used for single-action doors
TRITECH - Ref. 1720
Suitable for heavy weight flush doors tested to BS EN 1935 Grade 13 - 120 kg
COLUMBUS
Product features
- Quick and easy mounting
- Maintenance free
- (MSTS) Security device to outward opening doors three way adjustable hinges allow adjustment to doors horizontally, vertically and compresssion by turning socket screws
System M+ Class F-G
System M+ — Class F-G System Specifications Dimensions 308,2 x 42 x 112,7 mm Weight 3,6 kg Material Stainless Steel | Anodized aluminum Corrosion resistance EN 1670 - class 5 (norm:0-5) Door Specifications Door acting Single & double-acting Door weight Between 350 and 500 kg Minimum door thickness 50 mm Maximum door width 400 - 5000 mm Hold positions 90º, -90º and 0º Guarantee 2 years Functionalities Free Swing Damper Control 30° Speed Control Latch Control
System M+ Class AA -E
System Specifications Dimensions 294,8 x 32 x 99,6 mm Weight 2,6 kg Material Stainless Steel | Anodized aluminum Corrosion resistance EN 1670 - class 5 (norm:0-5) Door Specifications Door acting Single & double-acting Door weight Between 20 and 349 kg Minimum door thickness 40 mm Maximum door width 400 - 5000 mm Top gap 4-10 mm Bottom gap 11 mm Hold positions 90º, -90º and 0º Guarantee 2 years Functionalities Free Swing Damper control 30° Speed Control Latch Control

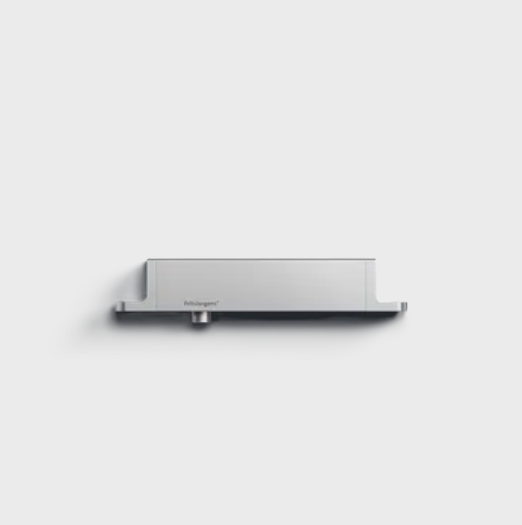

System Fx
System Specifications Dimensions 210 x 32 x 38 mm Placement Side to middle placement Pivot point From 70 mm to middle placement Cover plates No Weight capacity Class A: 20 ‑ 119 kg Class C: up to 209 kg Class G: up to 500 kg Pairs with Top pivots Top pivot 70 mm Class B (Class A) Top pivot 70 mm Class G (Class C, and G) Top pivot Reversed (all classes) Floor plates Floor plate squared Floor plate round Floor plate Flush squared Floor plate Flush rounded Functionalities Free swing Yes Hold Positions Yes Self-closing No Door specifications Door acting Revolving [door]: 360° Double-acting: 180° Single-acting: 90° Door width Unlimited Door height Unlimited Pivot point Side and middle Minimum door thickness 40 mm Top gap 4 - 10 mm Bottom gap 7 - 11 mm Door movement Free swing between 10° and 80°, with hold positions at 0°, 90°, 180° and 270°

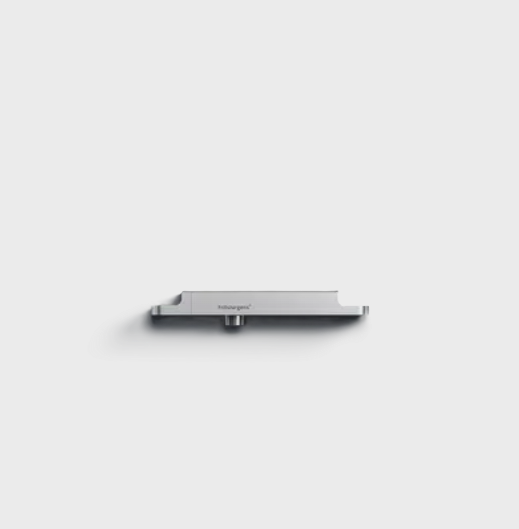

System One
System specifications Types 2 Dimensions 162 x 32 x 18 mm Weight 0,36 KG Door specifications Door Acting Double-acting | 360° rotation Single-acting | 90° rotation Hold positioning Weight capacity 0 - 500 kg Door width Unlimited Door height Unlimited Pivot point Side and middle Min. door thickness 40 mm Top gap 4-10 mm Bottom gap 7 mm - 11 mm Door movement 360° free-swinging pivot
Six Fois -1/2 Lever Handle Spring Load Left & Right - J-2550
Liv-1/2 Lever Handle Spring Loaded Left & Right - J-2150
Dimensions
- Overall Length: 144 mm
- Width: 8 mm
- Height: 52.5 mm
Ville-1/2 Lever Handle Spring Loaded Left & Right - J-1950
Dimensions
- Overall Length: 140 mm
- Width: 8 mm
- Height: 63.5 mm
Anvil - 1/2 Lever Handle Spring Loaded Left & Right - J-1850
Dimensions
- Overall Length: 124 mm
- Width: 23 mm
- Height: 54.5 mm
Evoke -1/2 Lever Handle Spring Loaded Left & Right - J-1550
Dimensions
- Overall Length: 120.5 mm
- Width: 7.5 mm
- Height: 61.5 mm
Core - 1/2 Lever Handle Spring Loaded Left & Right - J-0250
Dimensions
- Overall Length: 132 mm
- Width: 16 mm
- Height: 57 mm
